    ECLIPSE®
    CANTILEVER

    This elegant and modern heavy-duty in-ground cantilever umbrella is the ultimate choice for outdoor living and entertaining in both residential and commercial environments. It combines style with strength, size, and durability. With its Infinity Tilt and 360° rotation, the Eclipse® provides complete shade flexibility.

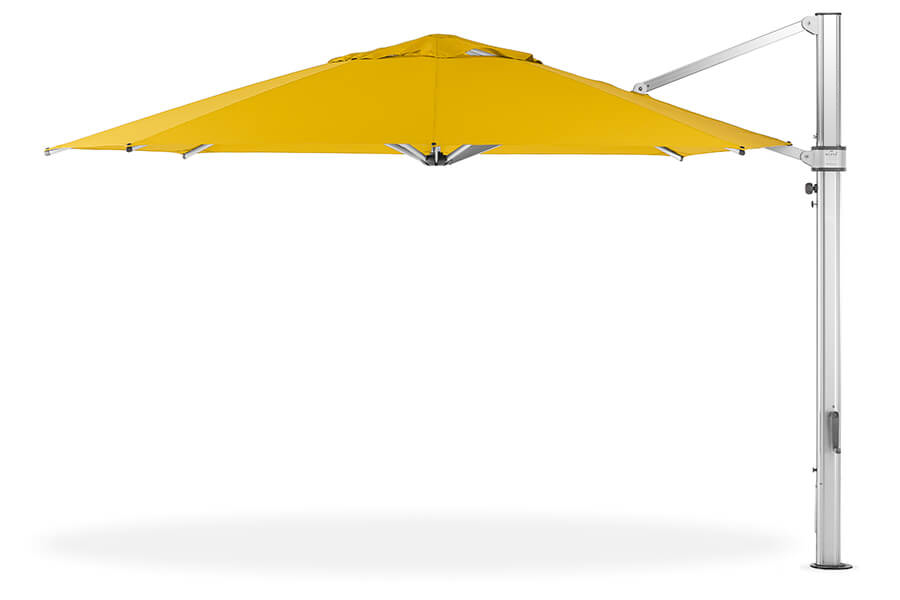

    SHOWN: 880ECU

    FABRIC: YLA - SUNFLOWER

    INNOVATIVE
    FEATURES

    • Full 360° rotation, combined with the Infinity Tilt system, allows for countless tilt angles, providing hours of maximum shade regardless of the position of the sun
    • The crank lift is built for commercial use, yet designed for smooth and effortless operation in any environment
    • The mast and all critical joints are extruded aluminum, ensuring unmatched strength and durability
    • Engineered to withstand 35 MPH winds. Included wind stabilizer kit increases this by 5 MPH
    • Maintenance free stainless steel hardware
    • Multiple mounting options are available, either permanent or semi-permanent, for installation on any surface



    SPECIFICATIONS
    SIZES

    880ECU

    13' OCTAGON

    octagon
    height:

    110"

    clearance:

    80"

    closed clearance:

    32"

    crank clearance:

    25"

    weight:

    120 lbs.

    canopy length:

    13"

    canopy width:

    13"

    open depth:

    162"

    closed depth:

    18.75"

    883ECU-SQ

    10' SQUARE

    square
    height:

    110"

    clearance:

    84"

    closed clearance:

    26"

    crank clearance:

    25"

    weight:

    108 lbs.

    canopy length:

    10"

    canopy width:

    10"

    open depth:

    144"

    closed depth:

    18.75"

    898ECU-R

    13'x10' RECTANGLE

    rectangle
    height:

    110"

    clearance:

    84"

    closed clearance:

    14"

    crank clearance:

    25"

    weight:

    115 lbs.

    canopy length:

    13"

    canopy width:

    10"

    open depth:

    151"

    closed depth:

    26"

    AVAILABLE
    FRAME FINISHES

    BK Matte Black

    BZ Matte Bronze

    HW Heather Willow

    MS Matte Silver

    WG Golden Oak

    WH Matte White

    MOUNTING
    OPTIONS

    Mounting options for the Eclipse® include semi-permanent, permanent, and non-permanent weighted bases suitable for any location.

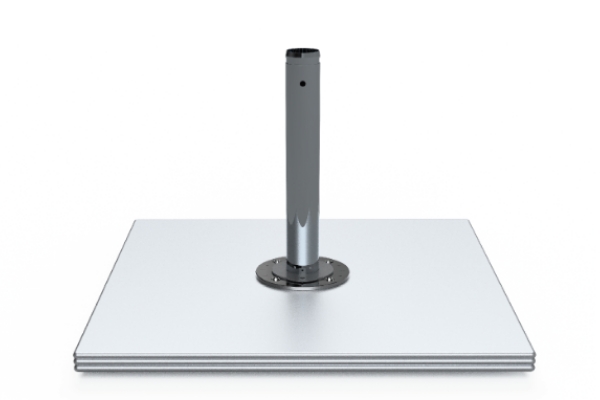

    Triple-stack Galvanized Steel Plate

    36G-SQx3

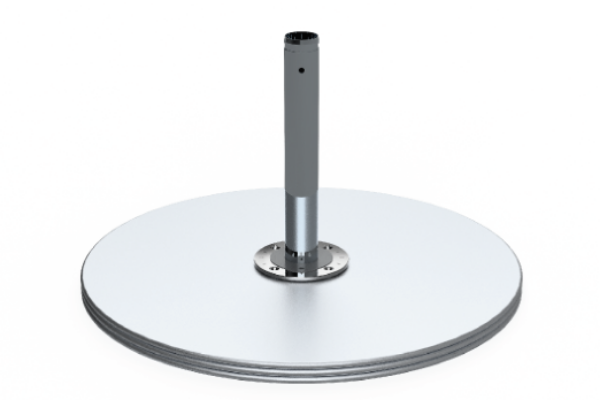

    Triple-stack Galvanized Steel Plate
    Triple-stack Galvanized Steel Plate

    40Gx3

    Triple-stack Galvanized Steel Plate

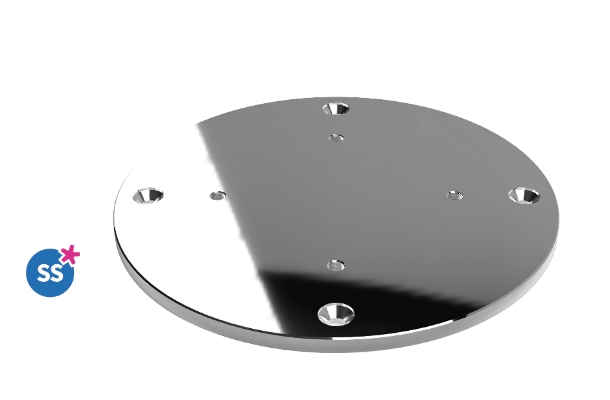

    Eclipse Direct Surface Mounting Plate

    ECU-DP

    Eclipse Direct Surface Mounting Plate
    In-Ground Mount

    ECU-IG

    In-Ground Mount

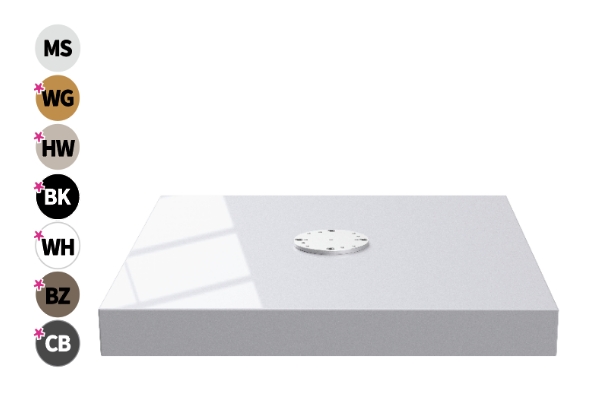

    Heavy Duty Base

    NGU-550

    Heavy Duty Base
    Specialty Mount

    NGU550-E

    Specialty Mount
    Heavy Duty Wheel Base

    ECU-480

    Heavy Duty Wheel Base

    Exceptional
    Fabric
    9 oz. Marine Grade Stocked

    Frankford uses only 9 oz. 100% marine grade, solutions dyed acrylic fabrics, manufactured with only the highest quality raw materials and the most rigorous quality-assurance procedures.

    See Fabric Swatches

    BASES
    AND MOUNTS

    Properly securing and weighting down your umbrella is crucial to ensuring years of sun protection.

    See Bases & Mounts
