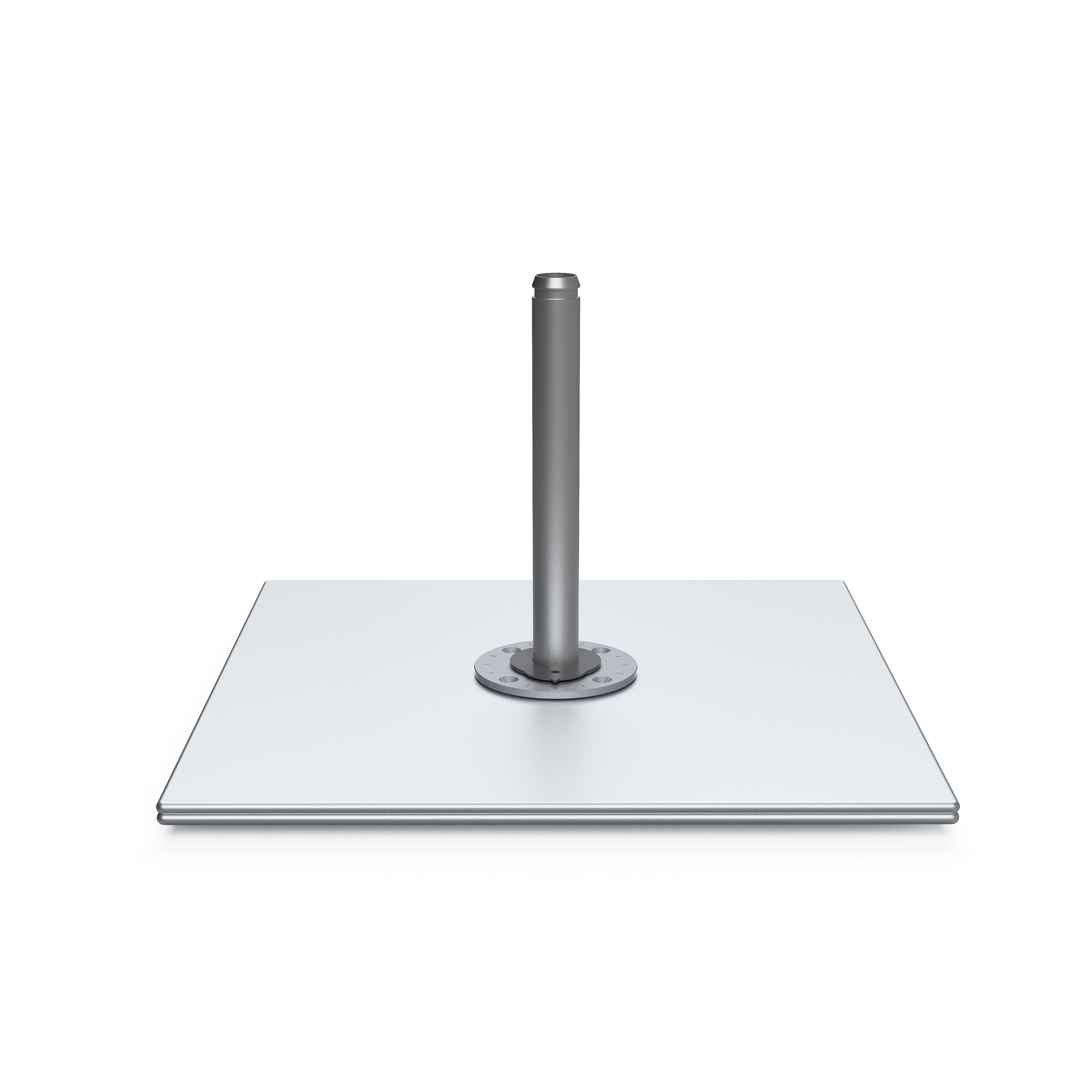

36G-SQx2
Weight: 400 lbs./181 kg.
Dimensions: 36”/91cm • 1”/2.5cm
Freestanding Use / +W-Kit
Add wheels: +HDW-Kit
Required minimum galvanized stack for the Aurora Cantilever.
Galvanized steel plate base
Bases & Mounts for Cantilever Umbrellas
Offset design demands precise support. Below are base and mounting systems engineered for the structural requirements of our cantilever umbrellas, with expanded color options available in the Shade Designer tool.
Freestanding

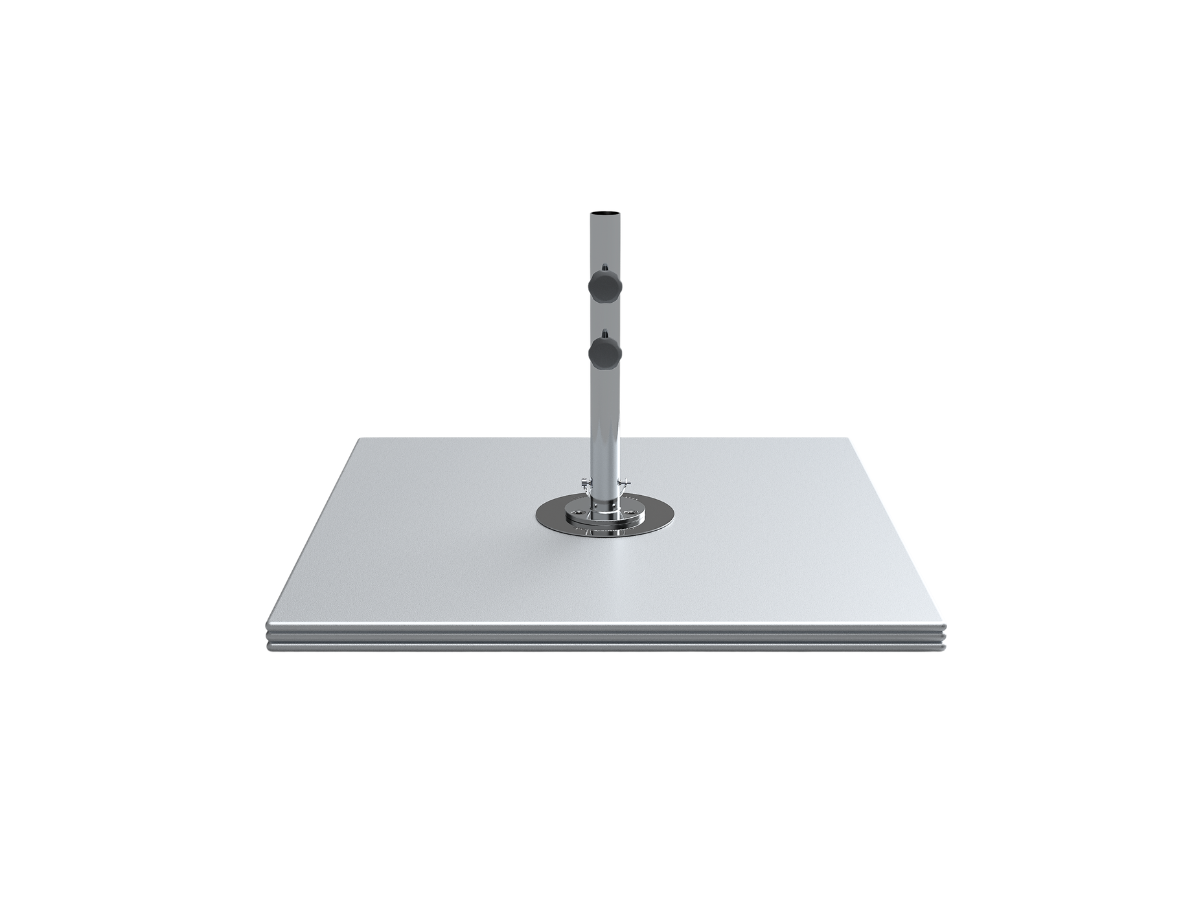

36G-SQx3
Weight: 600 lbs./272 kg.
Dimensions: 36”/91cm • 1.5”/3.8cm
Freestanding Use
Required minimum galvanized stack for the Eclipse® Cantilever
Galvanized steel plate

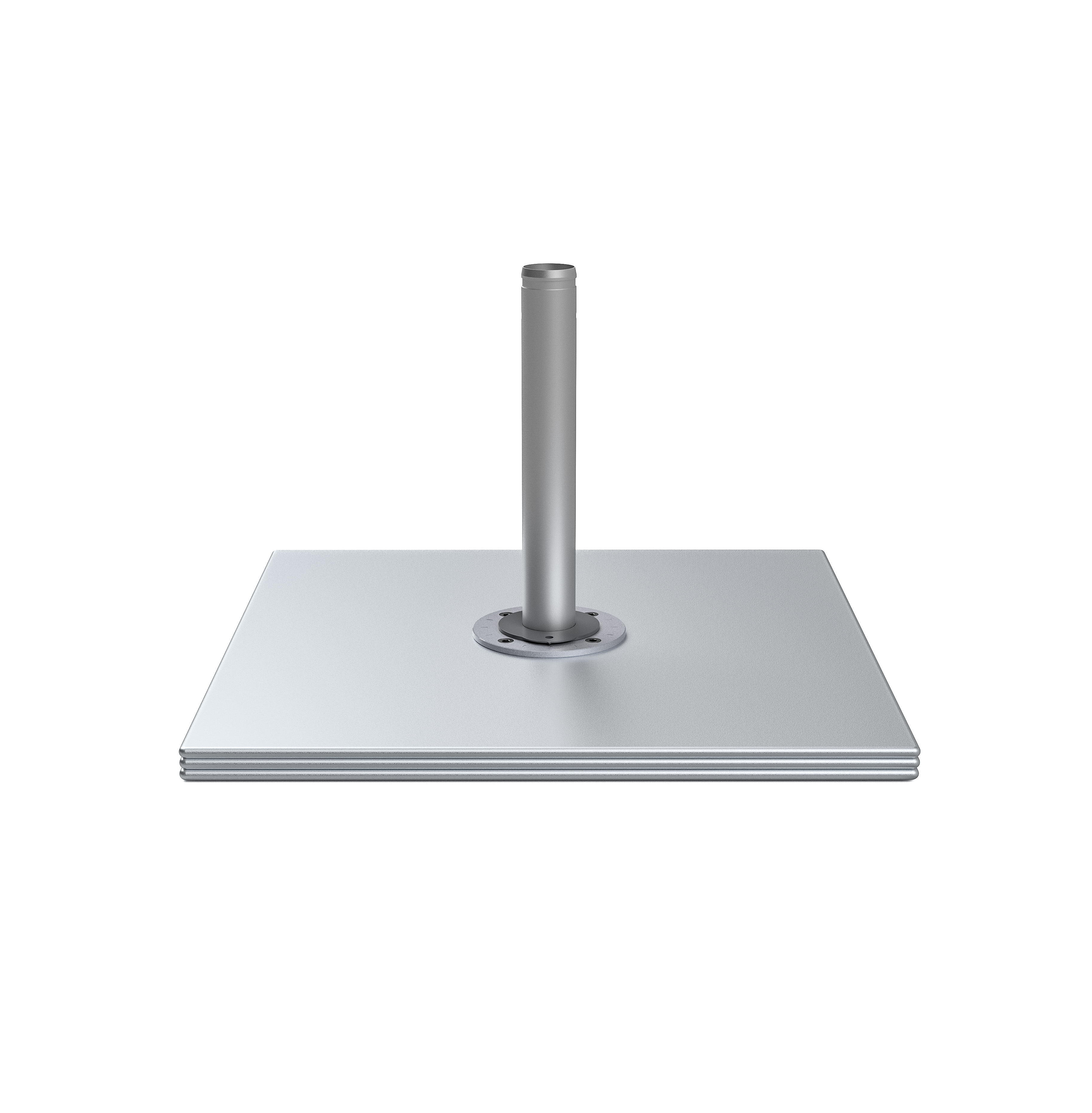

36G-SQx3 Square
Weight: 600 lbs./272 kg.
Dimensions: 36”/91cm • 6”/15.2cm
Freestanding Use / + Wheel Kit (HDW-K)
Add wheels: +HDW-Kit
Required minimum galvanized stack for the Aurora & Eclipse® Cantilever.
Galvanized steel plate base

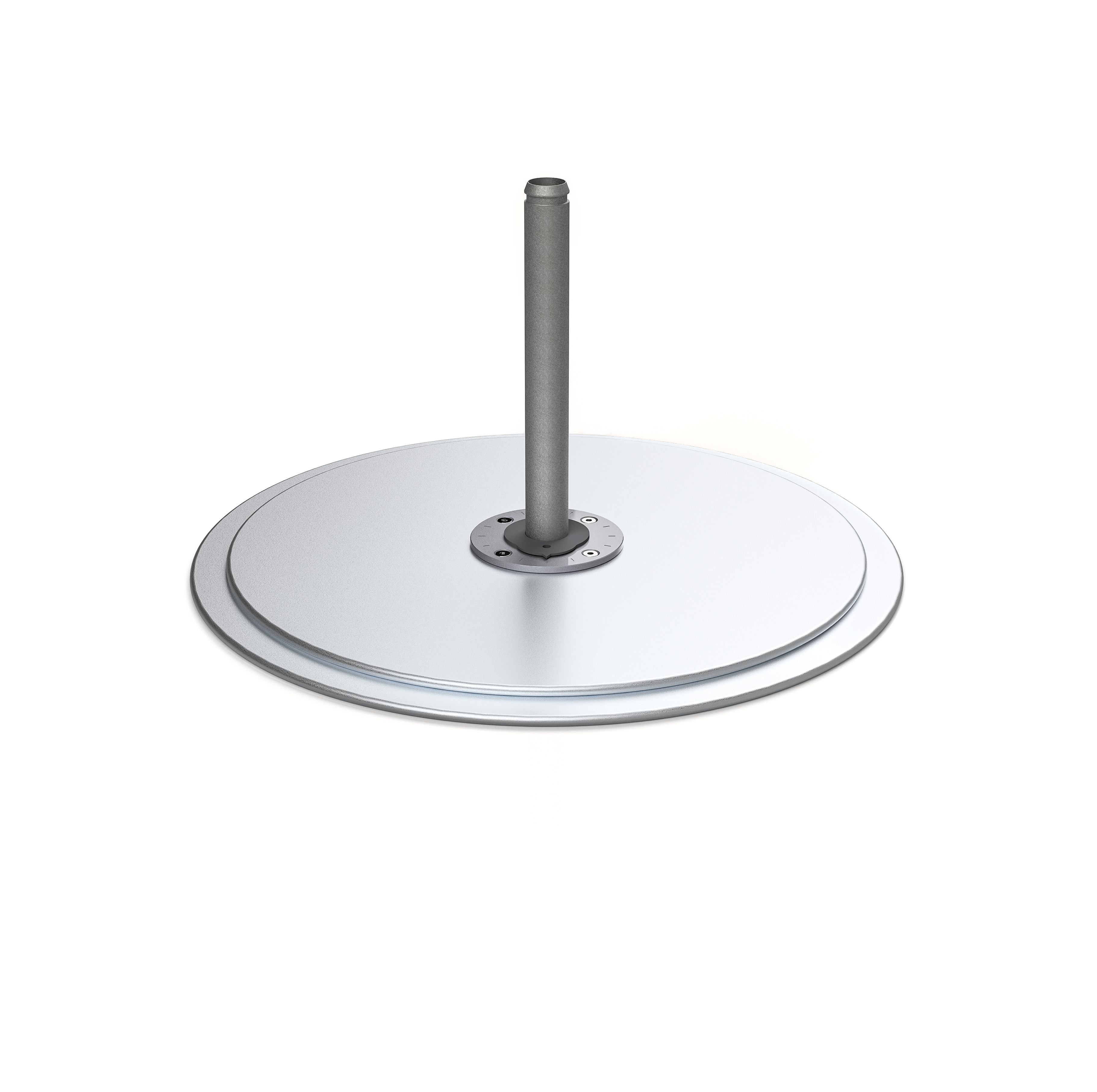

40G+36G Round
Weight: 335 lbs./152 kg.
Dimensions: 40”/101cm • 1”/2.5cm
Freestanding Use
Required minimum galvanized stack for the Aurora Cantilever.
Galvanized steel stack base

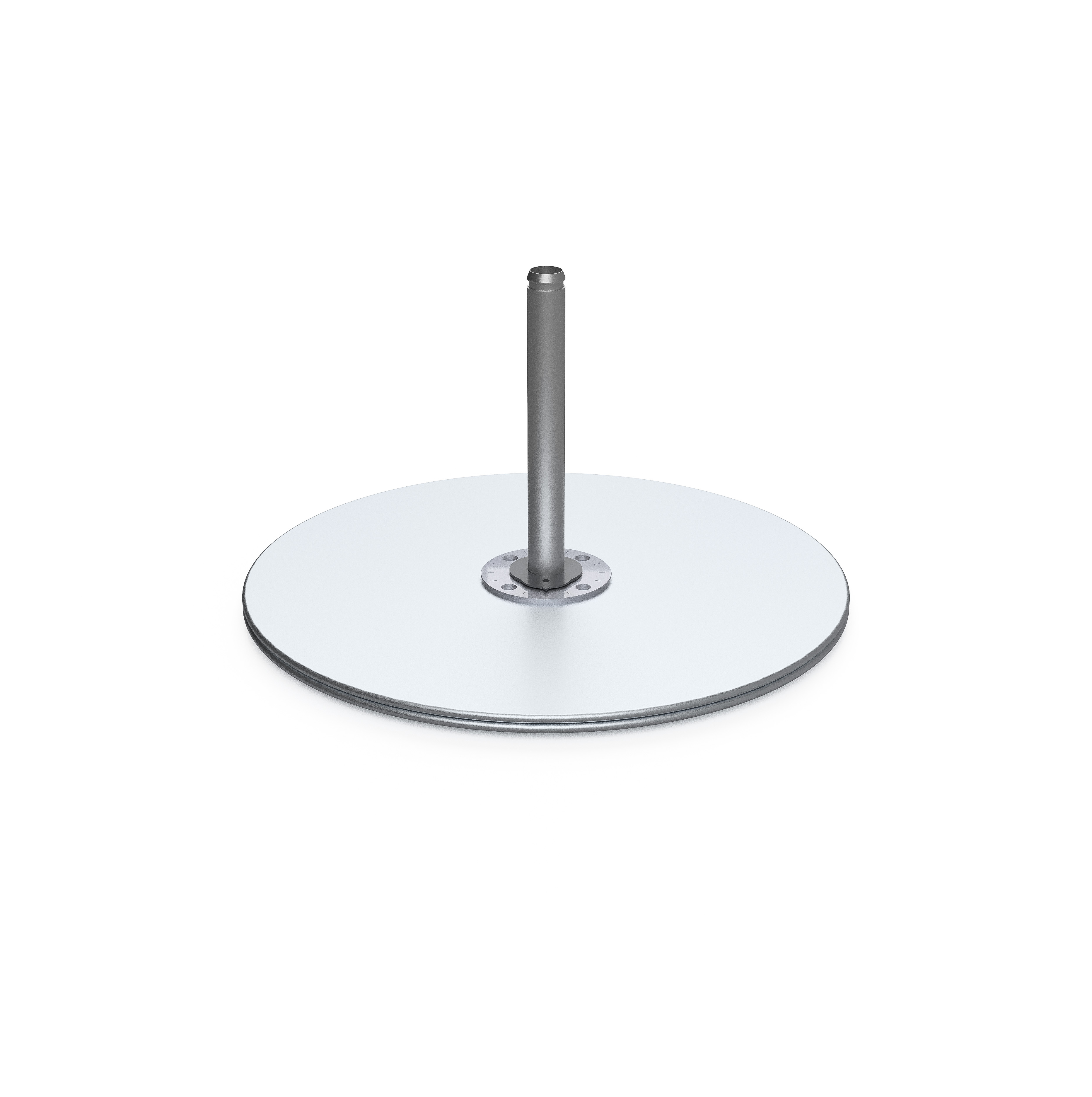

40Gx2 Round
Weight: 360 lbs./ 163 kg.
Dimensions: 40”/163cm • 1”/2.5cm
Freestanding Use
Required minimum galvanized stack for the Aurora Cantilever.
Galvanized steel stack base

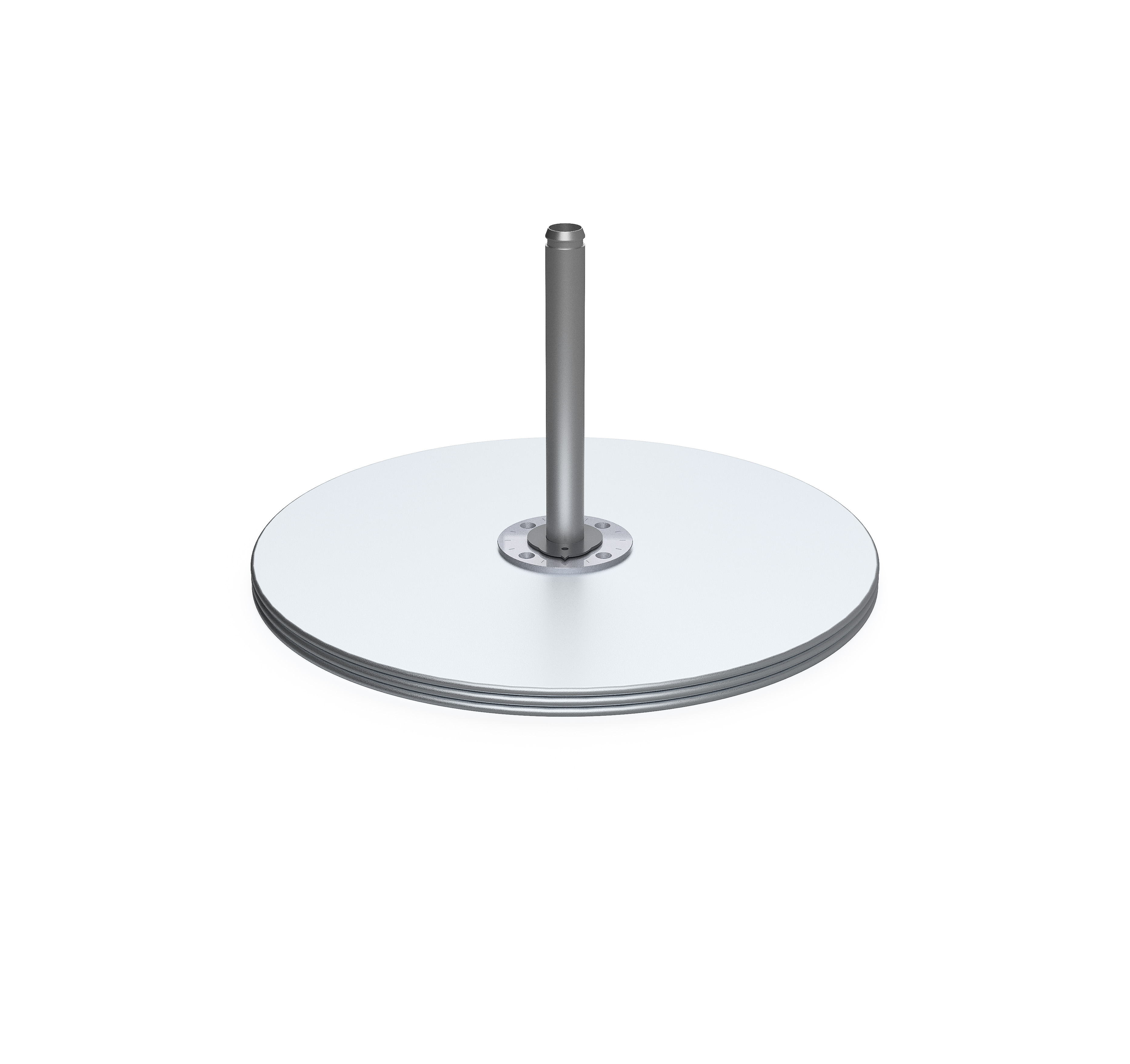

40Gx3 Round
Weight: 555 lbs./252 kg.
Dimensions: 40”/101cm • 1.5”/3.8cm
Freestanding Use
Required minimum galvanized stack for the Aurora and Eclipse® Cantilever.
Galvanized steel stack base

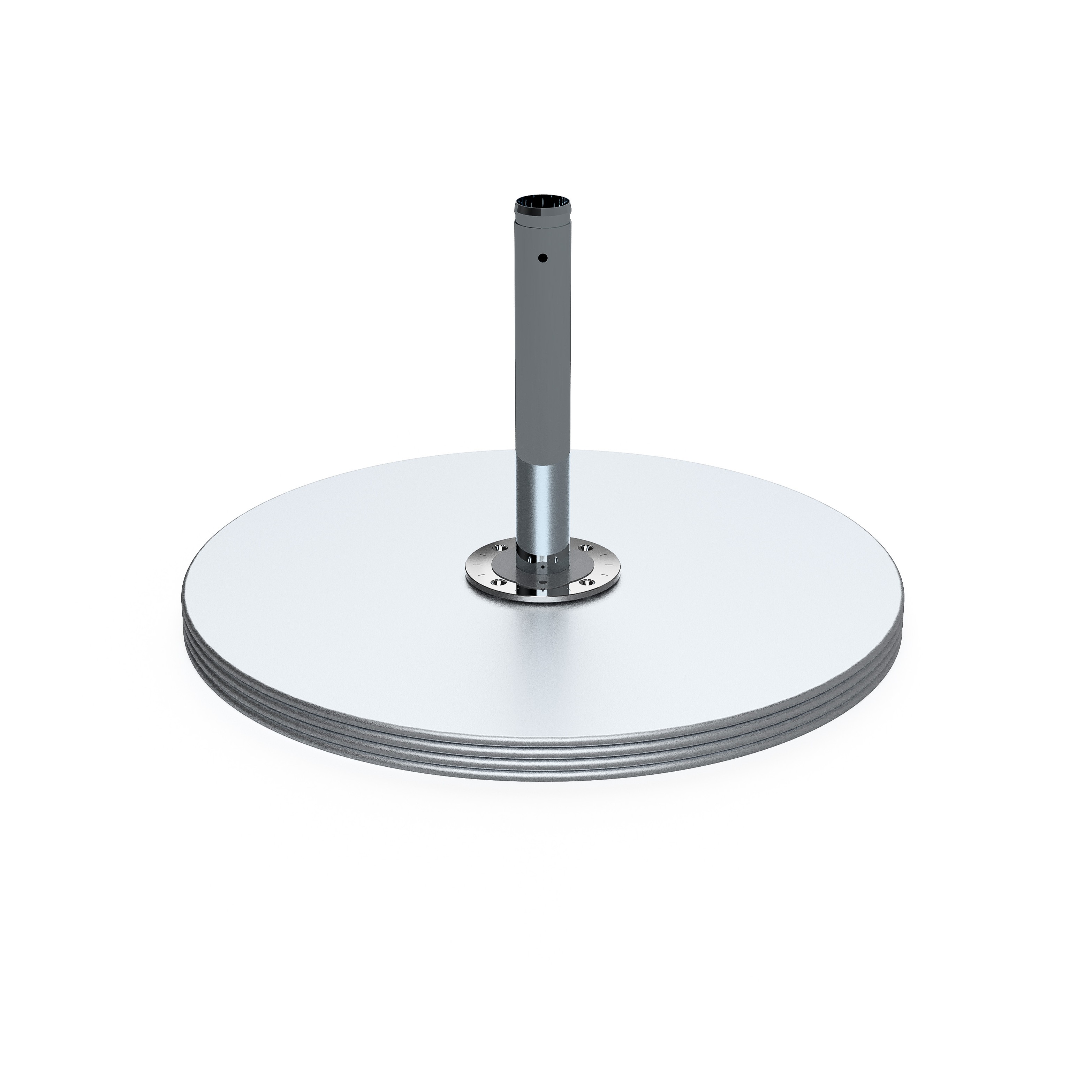

40Gx4 Round
Weight: 740 lbs./335 kg.
Dimensions: 40”/101cm • 2”/5cm
Freestanding Use
Galvanized steel stack base

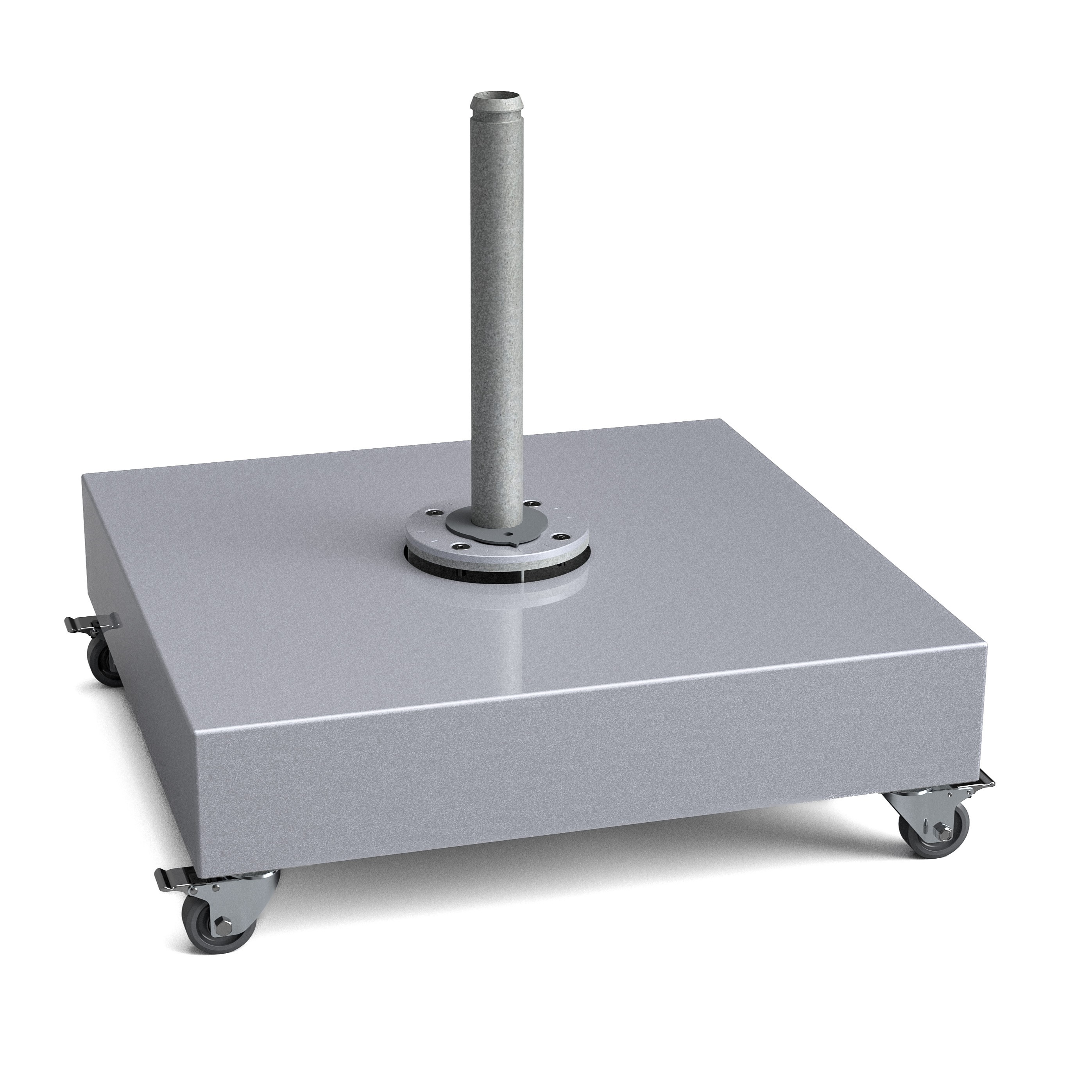

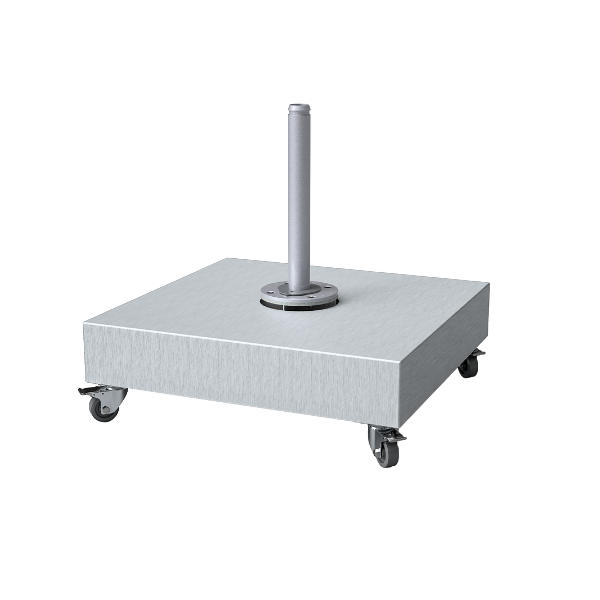

480 Square
Weight: 80 lbs./36 kg. (Empty)
Dimensions: 34”/86cm • 6.5”/16.5cm
Wheels Increase Height: 5”/12.7cm
Powder Coated Aluminum Cover
Freestanding use- residential only
Pavers Not Included: (12) 16"x16" pavers (35 lbs. min ea.) +/- 20 lbs. minimum 480 lbs/217kg.
Visit the catalog or shade designer to see available stock colors.
Powder coated aluminum cover

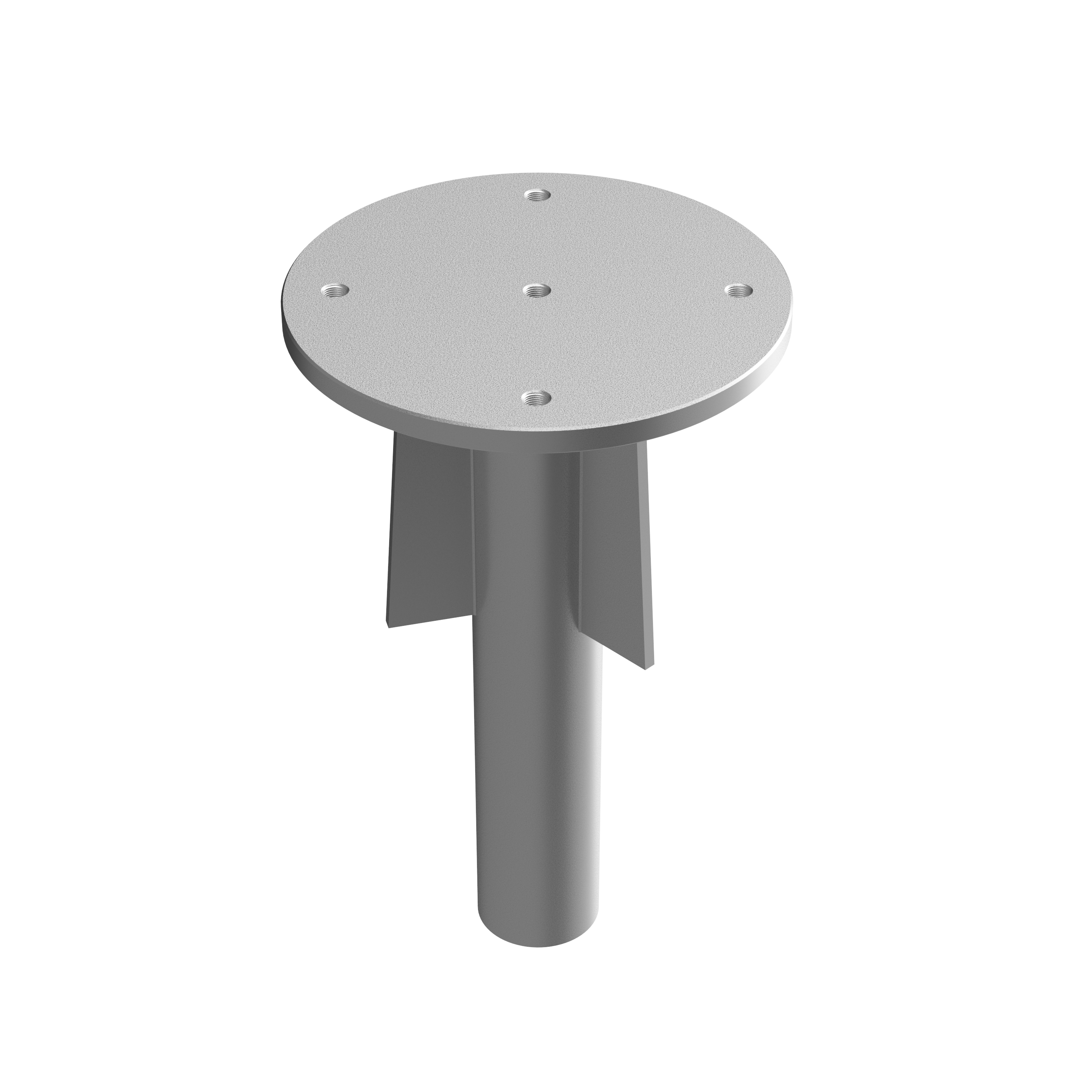

IG
Weight: 18 lbs./8.5 kg.
Dimensions: 8.5”/21cm • 14”/35cm
In-Ground mount
In-ground mount into soft soil or concrete
Installation materials are not included
In-Ground Mount
Direct Mount
*We recommend consulting with a licensed professional before installing all in-ground and direct surface installations.

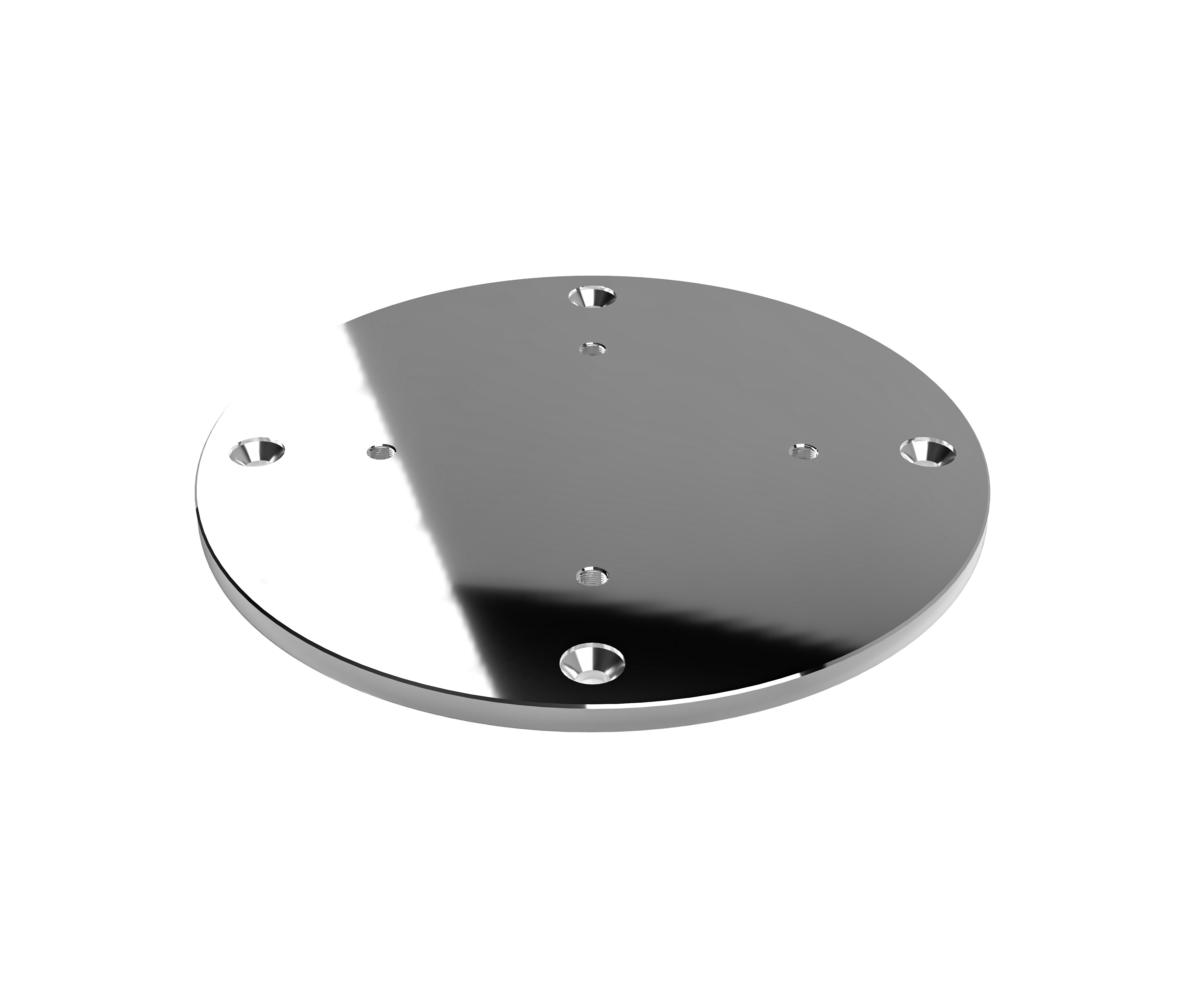

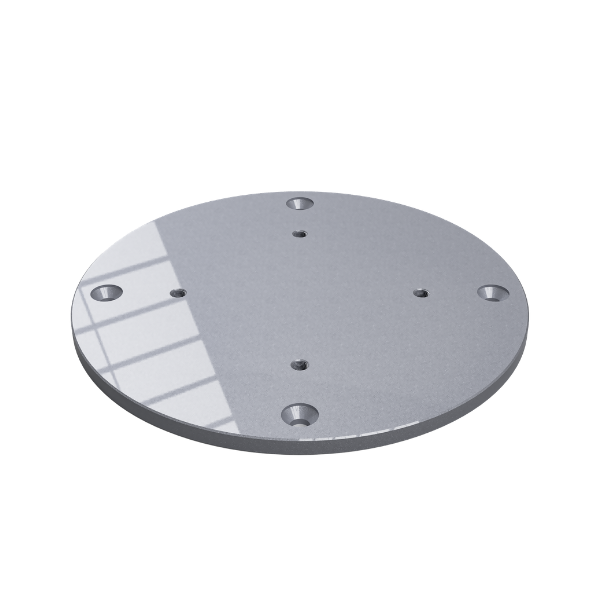

DP
Weight: 12 lbs./5 kg.
Dimensions: 12.5”/32cm • .5”/12.7mm
Surface installation
Stainless Steel Upgrade available- DP-SS
In-ground mounting into soft soil or concrete
Installation hardware not included
Direct Surface Mounting Plate

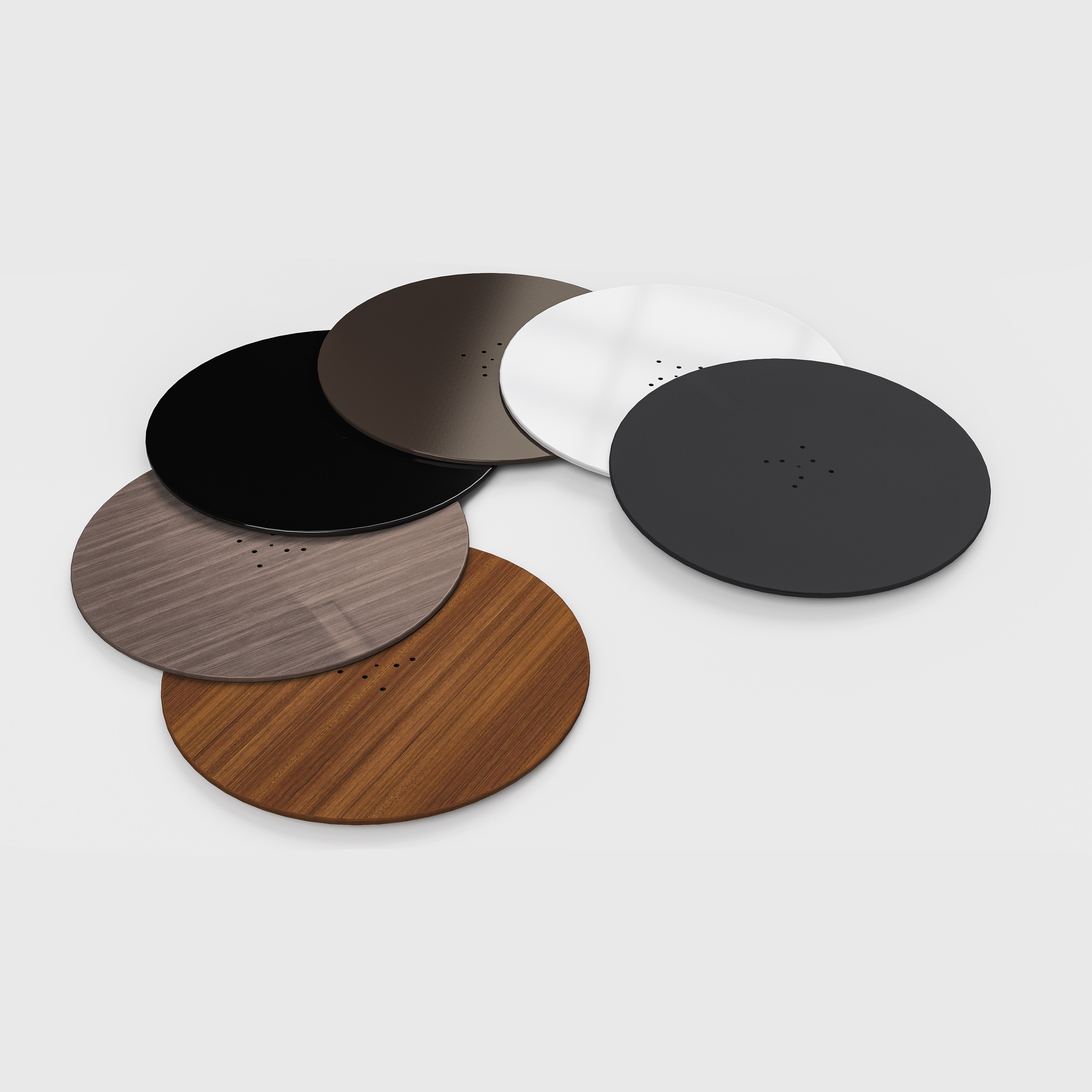

Finish the foundation
A base does the heavy lifting, but that doesn’t mean it can’t also carry style. Our decorative plate covers add a refined finishing touch in a range of premium finishes, elevating the entire installation from the ground up.
