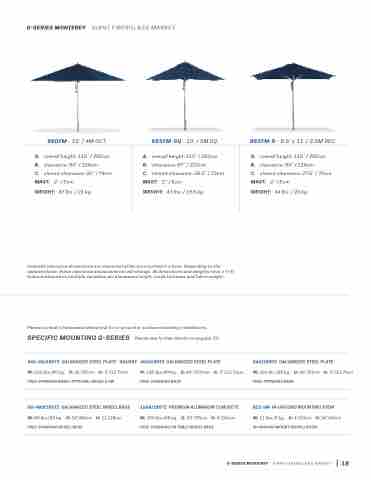

G-SERIES MONTEREY - GIANT FIBERGLASS MARKET
   880FM - 13’ / 4M OCT.
A. overall height: 115” / 292cm
B. clearance: 85” / 216cm
C. closed clearance: 30” / 76cm
MAST: 2” / 5cm WEIGHT: 47 lbs. / 21 kg.
883FM-SQ - 10’ / 3M SQ. A. overall height: 115” / 292cm
B. clearance: 87” / 220cm
C. closed clearance: 28.5” / 72cm MAST: 2” / 5cm
WEIGHT: 43 lbs. / 19.5 kg.
882FM-R - 8.5’ x 11’ / 3.5M REC. A. overall height: 115” / 292cm
B. clearance: 86” / 218cm
C. closed clearance: 27.5” / 70cm MAST: 2” / 5cm
    Umbrella clearance dimensions are measured while not mounted in a base. Depending on the selected base, these clearance measurements will change. All dimensions and weights have a +/-5” tolerance based on multiple variables; pin placement height, crank tautness and fabric weight.
Please consult a licensed professional for in-ground or surface mounting installations. SPECIFIC MOUNTING G-SERIES Please see further details on page(s) 50
36G-SQ/18ST2 GALVANIZED STEEL PLATE - SQUARE 40G/18ST2 GALVANIZED STEEL PLATE
36G/18ST2 GALVANIZED STEEL PLATE
W: 150 lbs./68 kg. D: 36”/91cm H: .5”/12.7mm FREE-STANDING BASE
BZ2-SM IN-GROUND MOUNTING STEM
W: 11 lbs./5 kg. D: 4”/10cm H: 16”/40cm IN-GROUND MOUNT INSTALLATION
WEIGHT:
44 lbs. / 20 kg.
   W: 200 lbs./90 kg. D: 36”/91cm H: .5”/12.7mm FREE-STANDING BASE / OPTIONAL WHEELS +W
GS-480/18ST2 GALVANIZED STEEL WHEEL BASE W: 80 lbs./36 kg. D: 34”/86cm H: 11”/28cm FREE-STANDING WHEEL BASE
W: 185 lbs./84 kg. D: 40”/101cm H: .5”/12.7mm FREE-STANDING BASE
150A/18ST2 PREMIUM ALUMINUM CONCRETE
W: 150 lbs./68 kg. D: 30”/76cm H: 4”/10cm FREE-STANDING OR TABLE WHEEL BASE
      G-SERIES MONTEREY - GIANT FIBERGLASS MARKET 18
