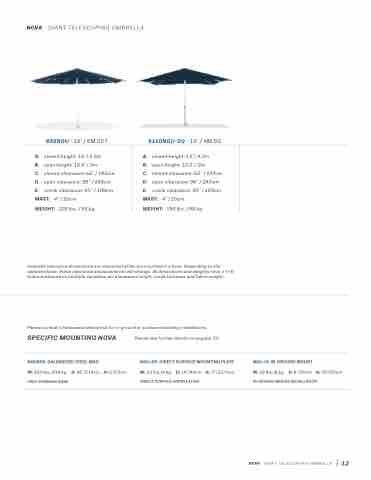

NOVA - GIANT TELESCOPING UMBRELLA
  896NGU - 16’ / 5M OCT.
A. closed height: 14’ / 4.3m
B. open height: 10.5’ / 3m
C. closed clearance: 66” / 182cm
D. open clearance: 98” / 248cm
E. crank clearance: 43” / 109cm
MAST: 4” / 10cm WEIGHT: 205 lbs. / 93 kg.
8110NGU-SQ - 13’ / 4M SQ.
A. closed height: 14’ / 4.3m
B. open height: 10.5’ / 3m
C. closed clearance: 52” / 147cm D. open clearance: 96” / 243cm E. crank clearance: 43” / 109cm MAST: 4” / 10cm
WEIGHT: 195 lbs. / 88 kg.
    Umbrella clearance dimensions are measured while not mounted in a base. Depending on the selected base, these clearance measurements will change. All dimensions and weights have a +/-5” tolerance based on multiple variables; pin placement height, crank tautness and fabric weight.
Please consult a licensed professional for in-ground or surface mounting installations.
 SPECIFIC MOUNTING NOVA
Please see further details on page(s) 50
NGU-DP DIRECT SURFACE MOUNTING PLATE W: 20 lbs./9 kg. D: 16”/40cm H: .5”/12.7mm DIRECT SURFACE INSTALLATION
  NGU550 GALVANIZED STEEL MAX
W: 550 lbs./249 kg. D: 45”/114cm FREE-STANDING BASE
H: 5”/13cm
NGU-IG IN-GROUND MOUNT
W: 18 lbs./8 kg. D: 8”/20cm H: 20”/50cm IN-GROUND MOUNT INSTALLATION
